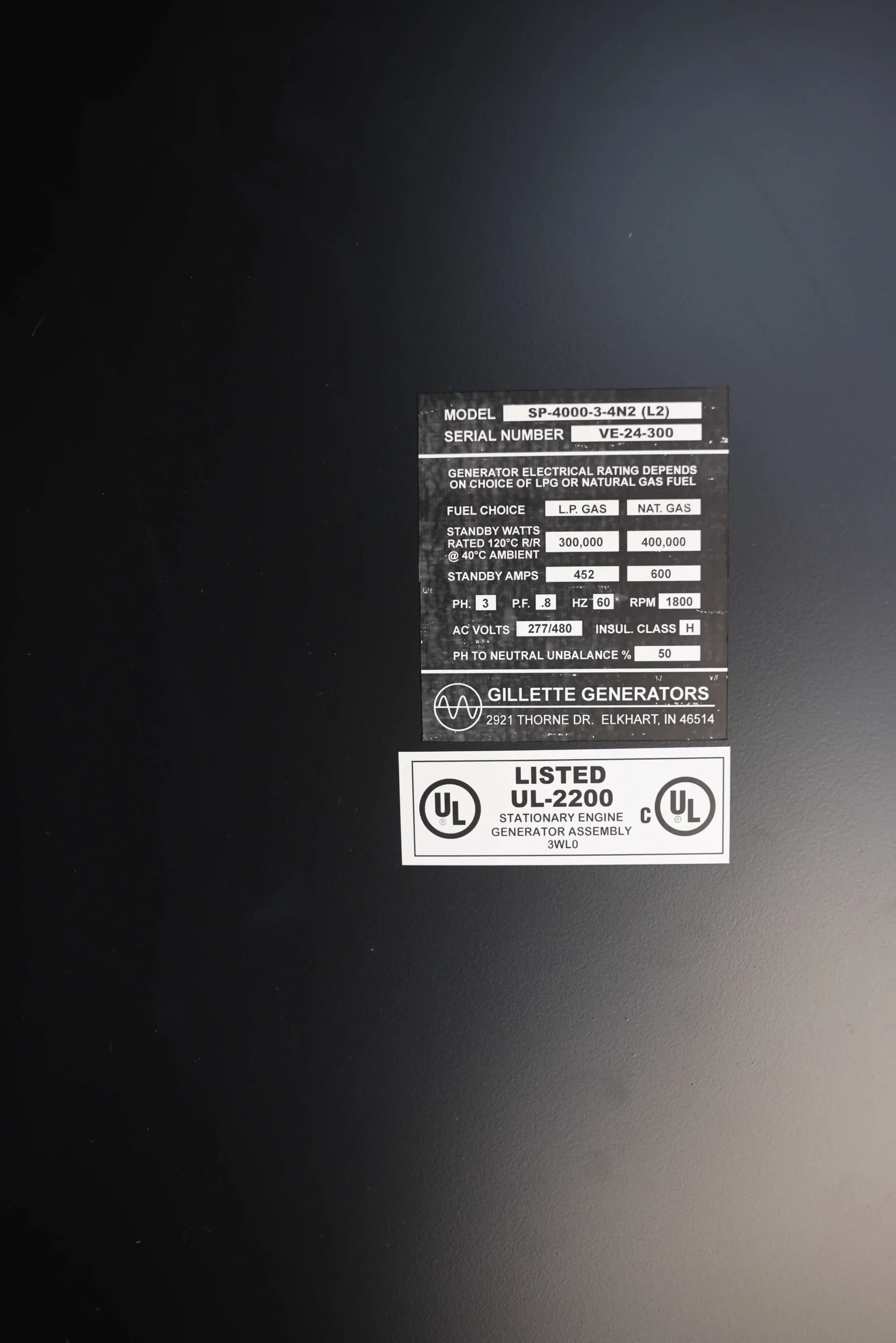

Gillette SP-4000-3-4N2(L2) 400kw /300kw Natural Gas/LP

Equipped with Deep Sea 7420 microprocessor controller featuring STOP-MANUAL-AUTO modes, LCD alerts, and engine protection:

• Low oil pressure
• High engine temperature
• Low radiator level
• Three auxiliary alarms
• Battery failure alarm
• Engine fail to start / over speed / under speed
• Over & under voltage
• Tamper-proof engine hour meter included

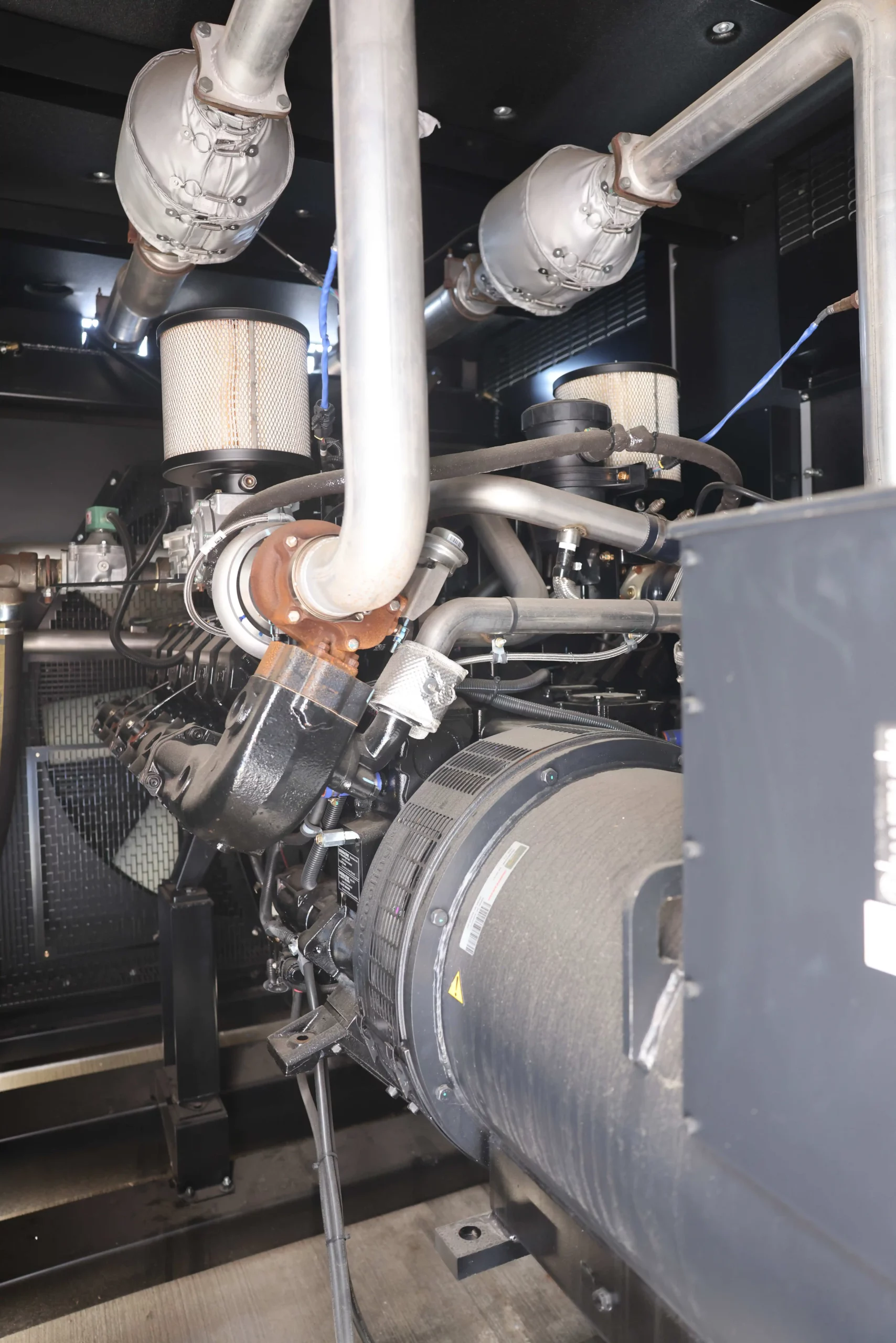

ENGINE

Robust engine design with:

• Full flow oil & air filters, oil pump, solenoid starter motor
• Hi-temp radiator, jacket water pump, thermostat
• Pusher fan & guard, exhaust manifold
• 24 VDC battery charging alternator
• Flexible exhaust connector, dry fuel regulator, solenoid lock-off
• “Isochronous” electronic governor
• Vibration isolators, coolant recovery (50/50 water-antifreeze mix)
• Flexible oil & radiator drain hoses

AC GENERATOR SYSTEM

High-performance generator setup:

• Shunt excited, brushless design
• Circuit breaker installed
• Direct engine connection with flex disc
• Class H insulation (180°C), self-ventilated
• Drip-proof, UL certified

VOLTAGE REGULATOR

• ½% regulation accuracy
• EMI filter
• Underspeed & over-excitation protection
• Fully encapsulated

DC ELECTRICAL SYSTEM

• Battery tray, cables, and hold down straps
• 2-stage battery float charger with auto recharging

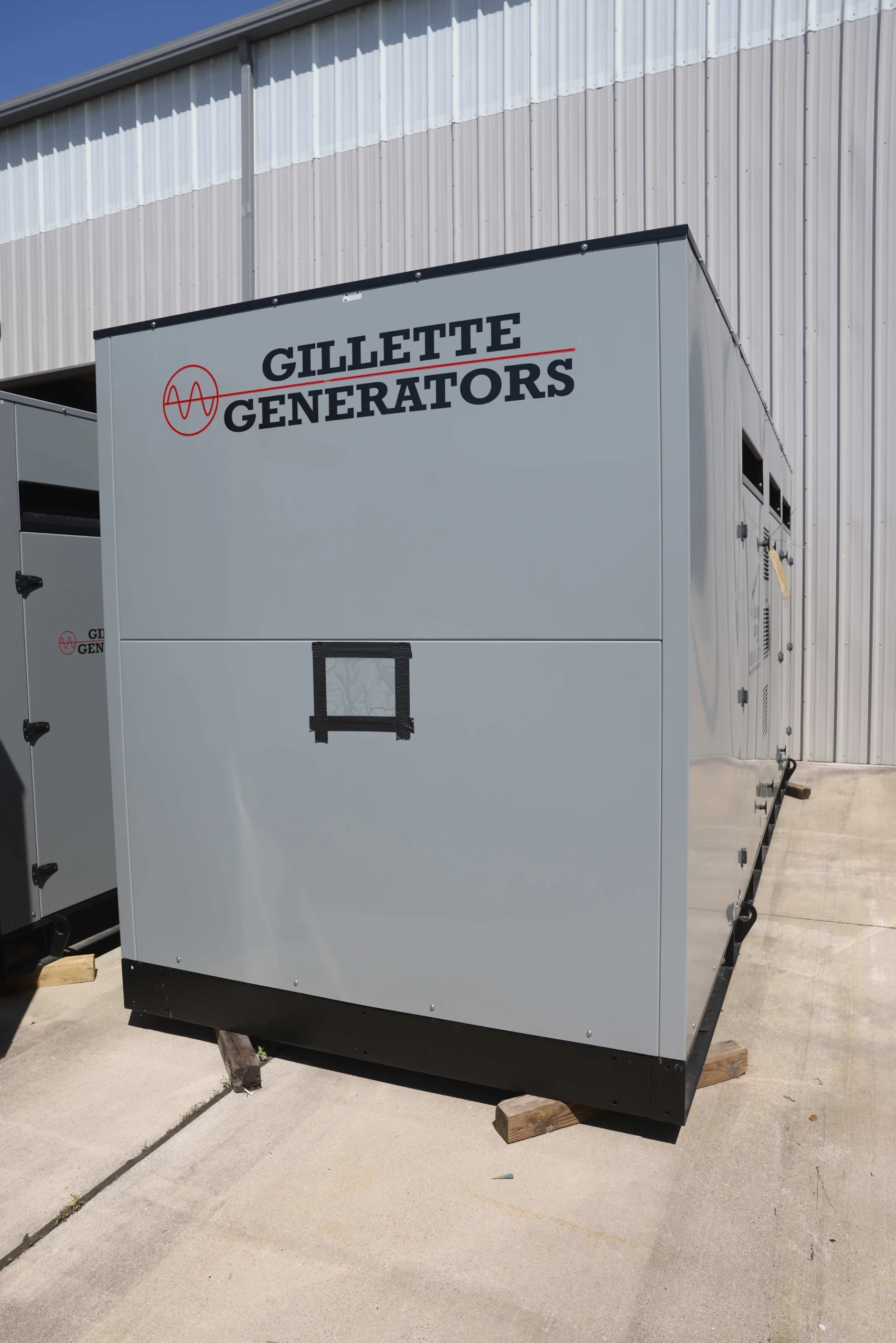

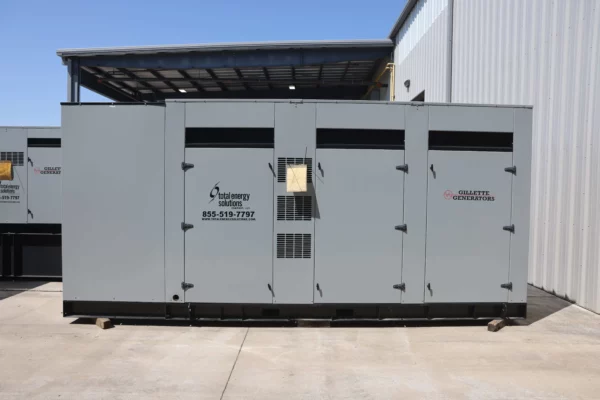

WEATHER/SOUND PROOF HOUSING

Aluminum housing with corrosion-resistant treatment:

• 9 heated/agitated wash stages
• Zinc phosphate etching coat
• Enamel powder coat (final baked on)
• 18/8 stainless steel hardware
