Gillette SPJD-2100-3-4-2 210kw Diesel

CONTROL PANELEquipped with Deep Sea 7420 microprocessor controller featuring STOP-MANUAL-AUTO modes, LCD alerts, and engine protection:

• • • Low oil pressure
    • High engine temperature
    • Low radiator level
    • Three auxiliary alarms
    • Battery failure alarm
    • Engine fail to start / over speed / under speed
    • Over & under voltage
    • Tamper-proof engine hour meter included

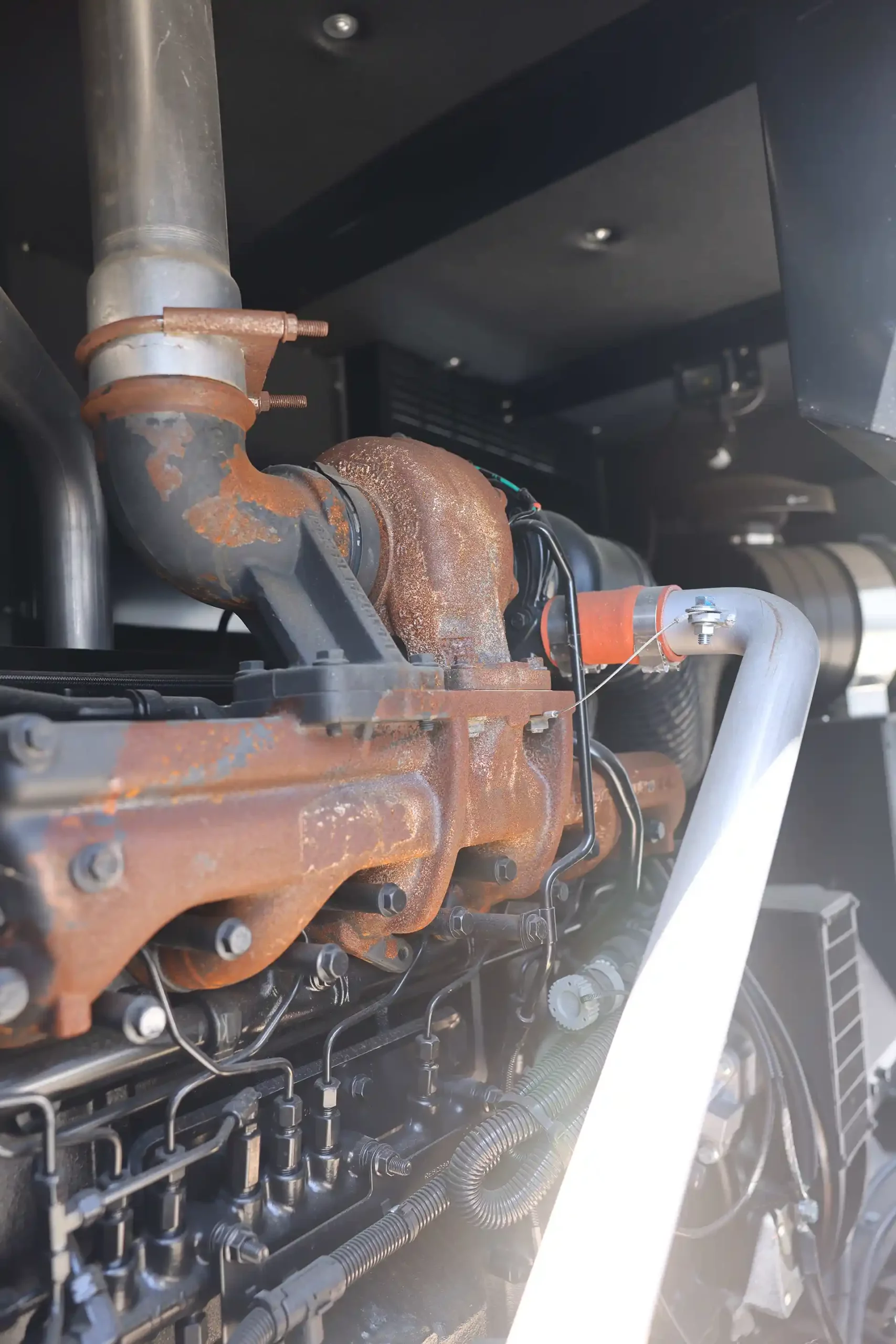

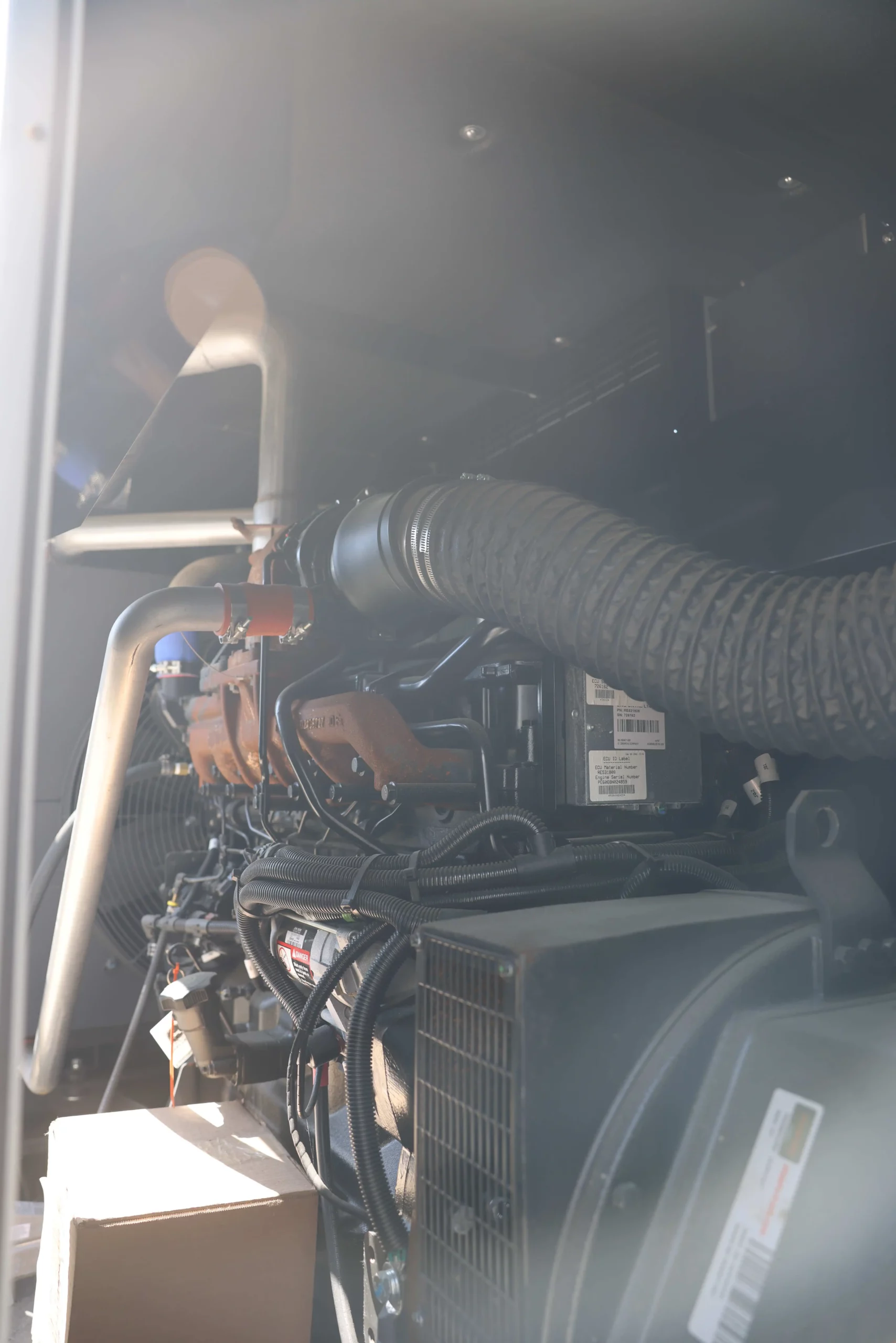

ENGINE

Robust engine design with:

• • • Full flow oil & air filters, oil pump, solenoid starter motor
    • Hi-temp radiator, jacket water pump, thermostat
    • Pusher fan & guard, exhaust manifold
    • 12 VDC battery charging alternator
    • Flexible exhaust connector
    • “Isochronous” electronic governor
    • Vibration isolators
    • Closed coolant recovery system (50/50 water to antifreeze mix)
    • Flexible oil & radiator drain hoses

AC GENERATOR SYSTEM

High-performance generator setup:

• • • Shunt excited, brushless design
    • Circuit breaker installed
    • Direct engine connection with flex disc
    • Class H insulation (180°C), self-ventilated
    • Drip-proof, UL certified

VOLTAGE REGULATOR

• • • ½% regulation accuracy
    • EMI filter
    • Underspeed & over-excitation protection
    • Fully encapsulated

DC ELECTRICAL SYSTEM

• • • Battery tray, cables, and hold down straps
    • 2-stage battery float charger with auto recharging

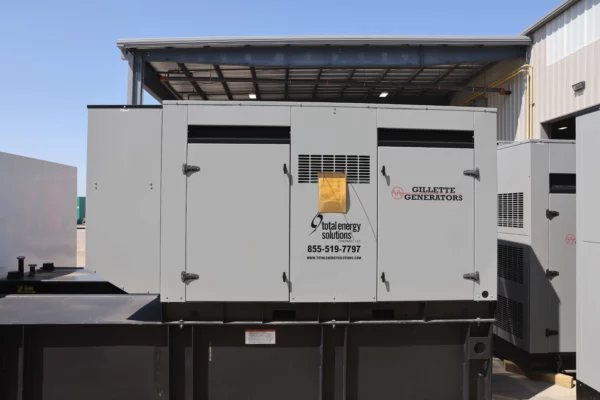

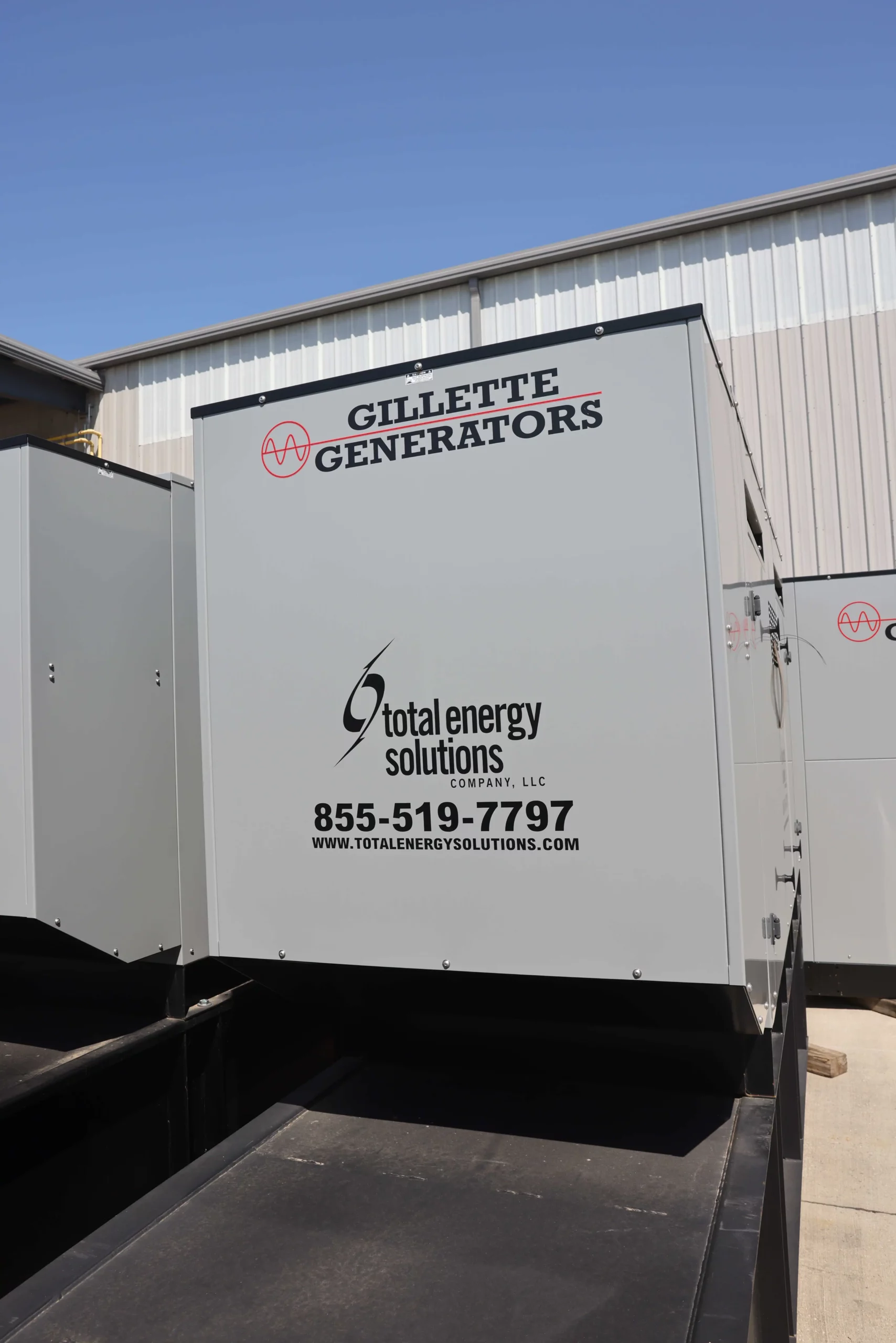

WEATHER/SOUND PROOF HOUSING

Aluminum housing with corrosion-resistant treatment:

• • 9 heated/agitated wash stages
  • Zinc phosphate etching coat
  • Enamel powder coat (final baked on)
  • 18/8 stainless steel hardware
