Additional information
| Condition | Used |
|---|---|
| Model | MMG120 |
| Generator Set Type | Prime |
| Fuel Type | Diesel |
| KW | 93kw |
| Phase Type | 3P |
| Operating Hours | TBD |
| Brand | Magnum |

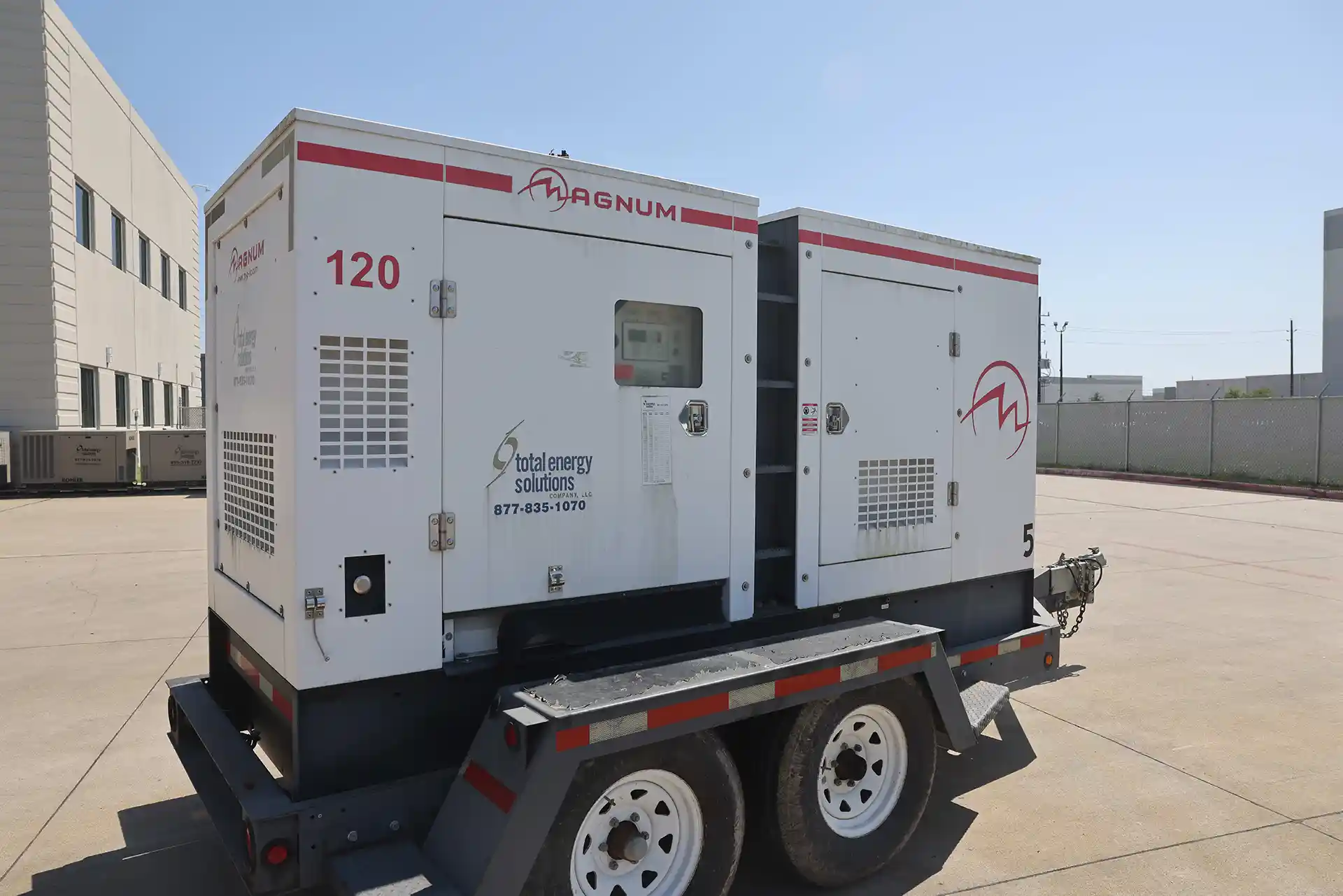

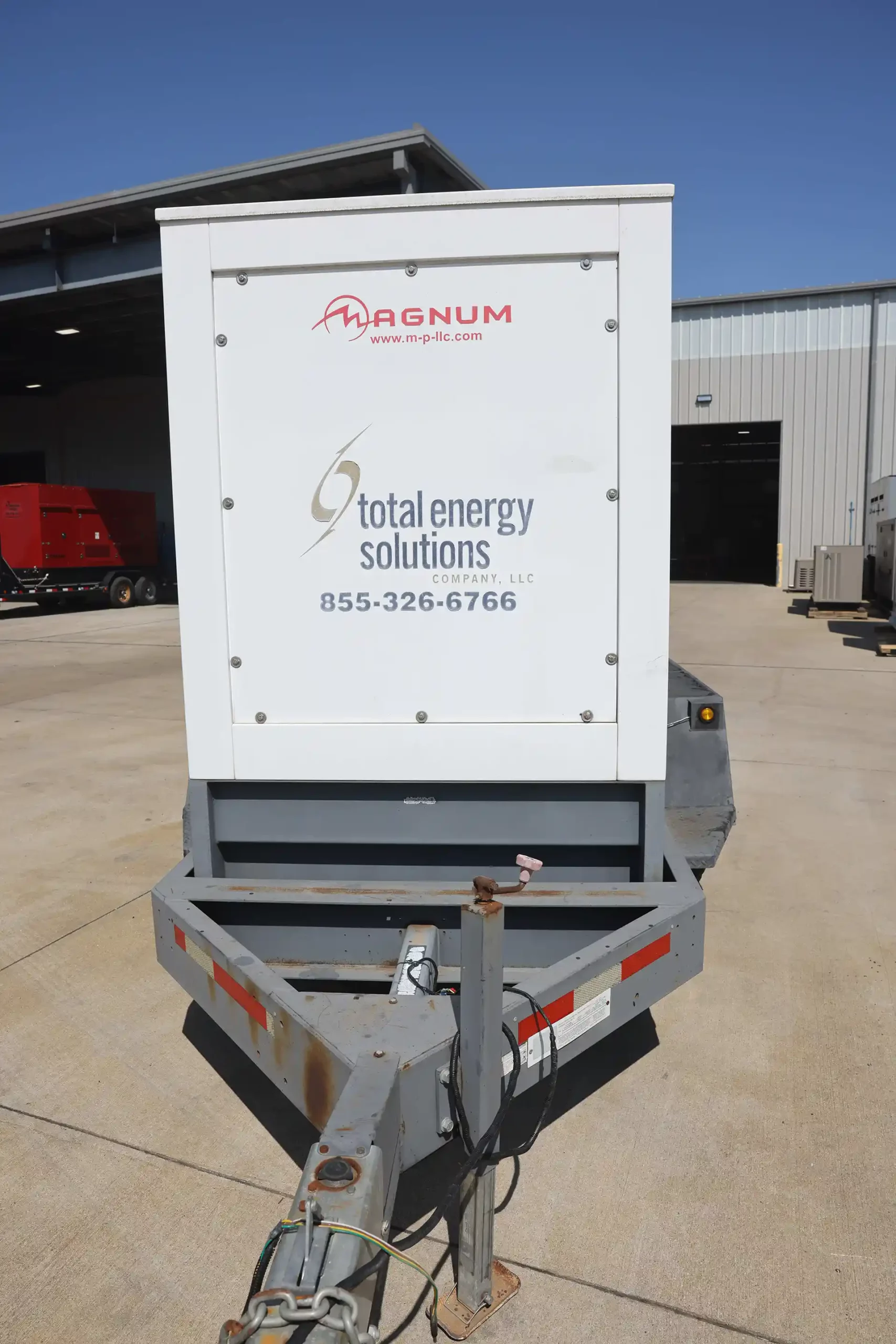

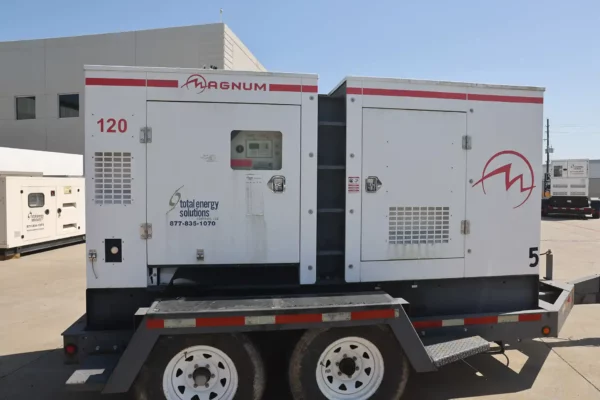

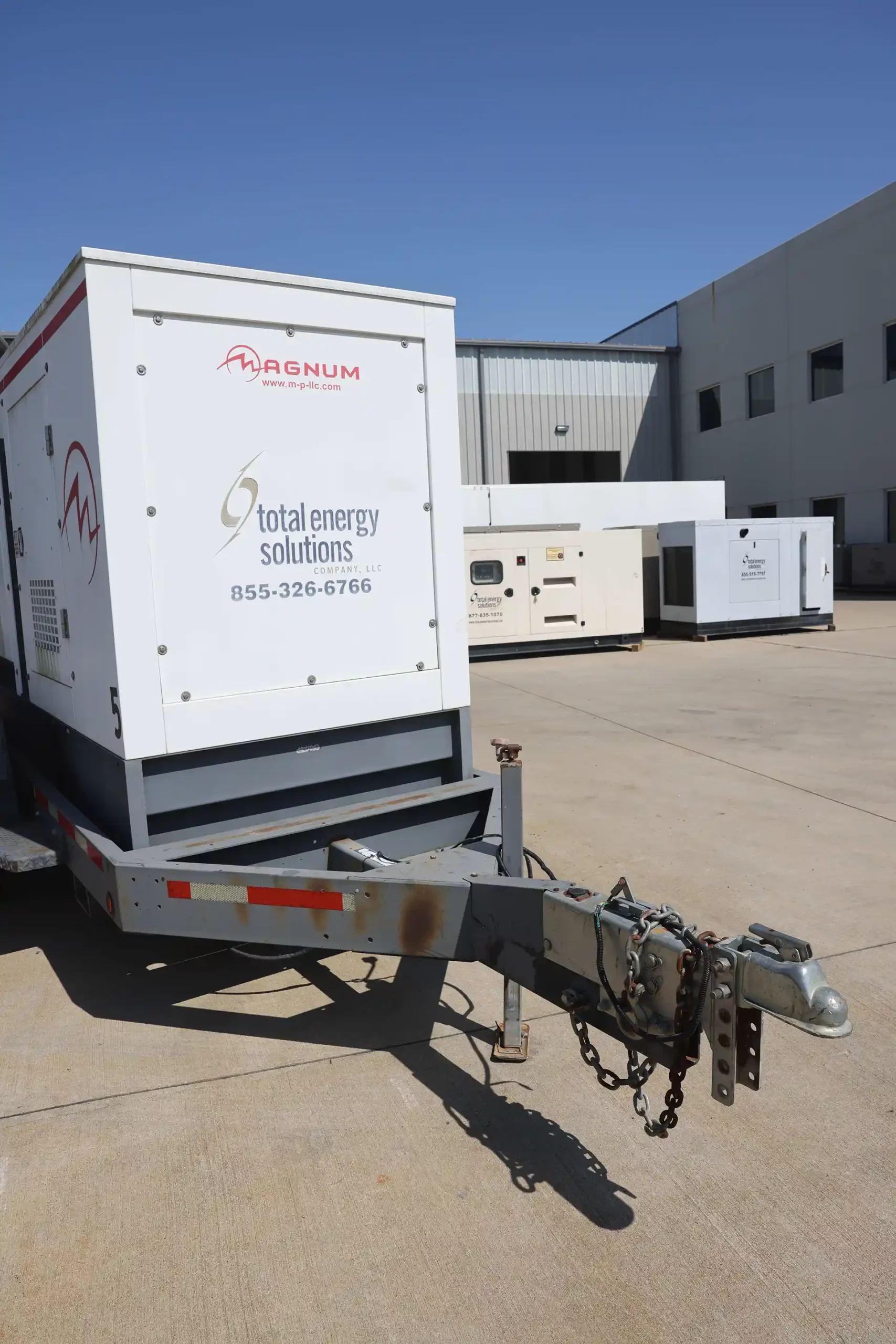

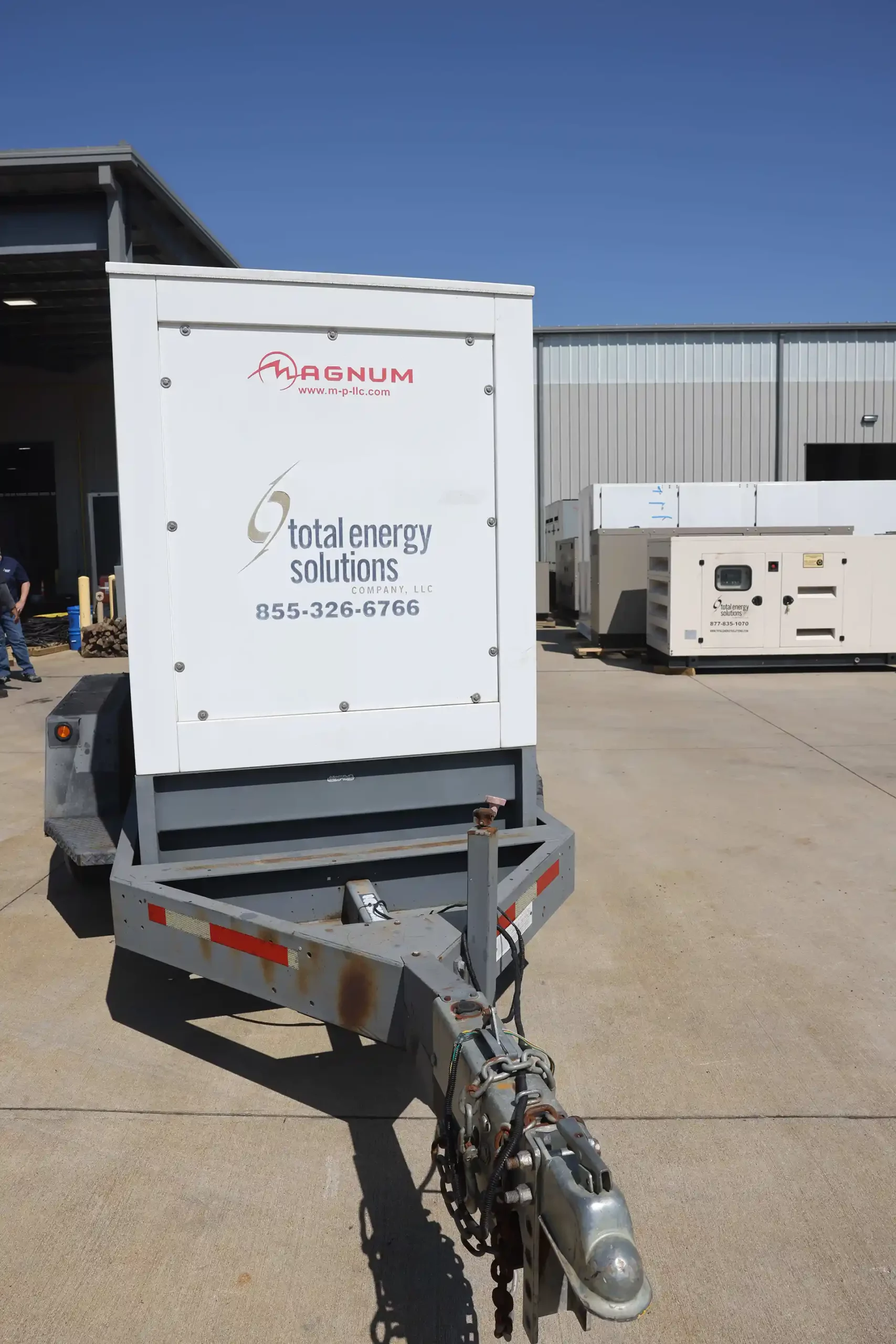

Magnum MMG120 93kw Diesel
| Condition | Used |
|---|---|
| Model | MMG120 |
| Generator Set Type | Prime |
| Fuel Type | Diesel |
| KW | 93kw |
| Phase Type | 3P |
| Operating Hours | TBD |
| Brand | Magnum |
- John Deere® PE4045HF285 – turbocharged, diesel engine
- Prime – 144 hp @ 1800 rpm
- Standby – 158 hp @ 1800 rpm
- 4 cylinder
- 4.5 L displacement
- Tier III approved
- Steel, single wall fuel tank
- 342 gal. capacity
- 44 hr. run time – full load
- Fuel tank built into skid of generator set
- Fuel consumption at prime:
- 100% – 7.4 gph (28.0 Lph)
- 75% – 5.6 gph (21.2 Lph)
- 50% – 3.7 gph (14.0 Lph)
- Cooling system capable of operating at 120°F ambient
- Low coolant shutdown
- Radiator and oil drains plumbed to exterior
- Rubber vibration dampers isolate engine/generator from frame
- Disposable air filter – paper element
- Air filter restriction indicator mounted on control panel
- 60 Hz engine/generator
- Electronic isochronous governing
